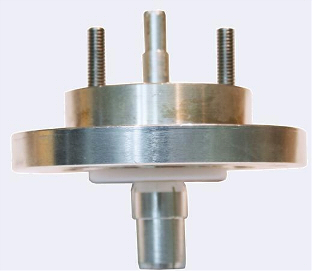

Connectors 7/8 to 3-1/8

Characteristics

• Produced according to standards
• The best conductive for waves
• Screw type
• High quality

Produced according to standards

• iec 169-10
• cecc 22190

Applications

• Military and civil radio-telecommunications equipment
• Countermeasures
• Navy equipment
• Video communications
• Computer networks

Raw material

• Main body: brass
• Center contacts: beryllium copper (depend on order)
• Insulators: PTFE Teflon
• Gaskets: silicone rubber

Platting

• Main body: silver or nickel (depend on order)
• Center contacts: silver or nickel (depend on order)

Electrical characteristics

• Impedance: the 50th Ω
• Frequency range:  5th GHz.
• Vswr:  1:04-1:22 for the 45th-5000Mhz.
• Insertion loss (db): 00:05
• Contact resistance: 1:50 m Ω
